350 Series Terminal
Product Details:
X
Product Description

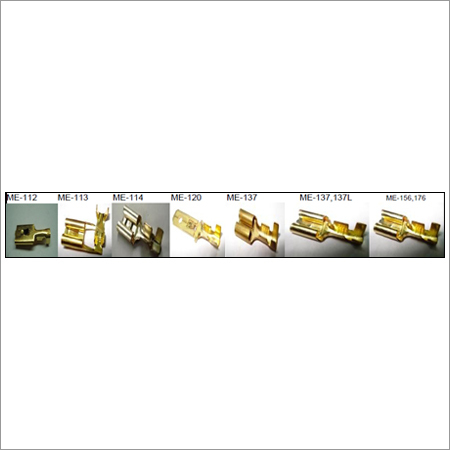

350 Series Terminal
We remain instrumental in bringing forth an extensive gamut of best quality industrial tools. Our 350 Series Terminal is highly applicable for various applications such as wire harness, automobile hose, cable terminals and many more.
Important specifications and features of 350 Series Terminal.
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | G | C1 | C2 | |
| ME-112 | 8.6 F.LOCK | 3K | 8.2X0.80 | 4.0-6.0 | 23.50 | 12.00 | 9.00 | 2.80 | 0.55 | 3.30 | 3.80 | |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | LH | F | C1 | C2 |
| ME-113A | 8.6 F. FLAG (A) | 2.5K | 8.2X0.80 | 0.75-2.50 | 17.00 | 8.60 | 9.00 | 3.10 | 4.60 | 6.00 | 3.60 | 3.50 |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | G | C1 | C2 | |
| ME-114 | 8.6 F.SLOT | 3K | 8.2X0.80 | 4.0-6.0 | 22.00 | 9.00 | 9.30 | 3.00 | 0.50 | 4.50 | 4.50 | |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | LH | F | C1 | C2 |
| ME-120 | 7.8 M | 3K | 8.20X0.80 | 3.5-5.50 | 30.00 | 16.60 | 7.70 | 0.80 | 3.00 | 15.80 | 5.00 | 5.20 |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | G | C1 | C2 | |
| ME-137 | 9.5 F | 1.5K | 9.5X1.20 | 1.5-3.0 | 27.00 | 12.00 | 11.00 | 4.20 | 1.00 | 6.00 | 6.00 | |
| ME-137L | 9.5 F/LOCK | 1.5K | 9.5X1.20 | 1.5-3.0 | 27.00 | 12.00 | 11.00 | 3.80 | 1.00 | 6.00 | 6.00 | |
| ME-156 | 8.6 F LOCK (LL) | 2K | 8.2 X 0.80 | 4.0-6.0 | 24.60 | 12.20 | 9.00 | 3.20 | 0.55 | 5.60 | 5.30 | |
| ME-176 | 8.6 F/L (S) | 4K | N/A | 0.75-2.50 | 20.50 | 8.50 | 8.90 | 3.20 | 0.55 | 3.50 | 3.50 | |
