110 Series Terminals
Product Details:
X
Product Description

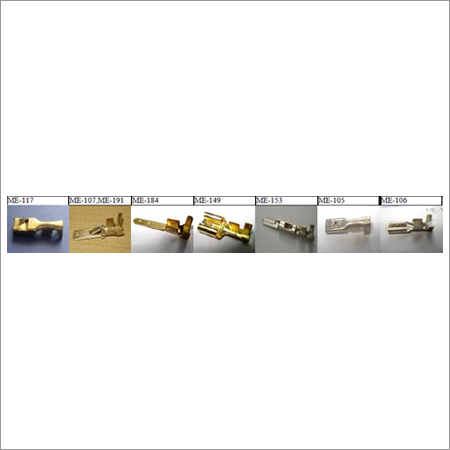

110 Series Terminals
Understanding the demands of our esteemed clients we bring forth a wide range of wiring terminals that are used for many applications. Presenting 110 Series Terminals which is specially designed under the guidance of renowned technicians who have very good knowledge of these items. These terminals are highly durable and made from trustworthy materials. Important specifications for 110 Series Terminals are given below.
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | ID | C1 | C2 |
| ME-117 B | 3.2 F / L (B) | 3.5K | 2.8X0.50 | 0.5-1.50 | 15.50 | 7.00 | 4.10 | 2.65 | 1.90 | 2.50 | 3.60 |
| BRASS SNAP ON TYPE MALE LOCK TERMINAL | |||||||||||
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | LH | F | C1 | C2 |
| ME-107B | 2.8 M LOCK (B) | 10k | 2.8X0.50 | 0.5-1.50 | 20.60 | 12.00 | 2.80 | 2.40 | 11.20 | 3.50 | 3.30 |
| ME-191 | 2.8 M/L (Side Feed) | 3.5K | 2.8X0.50 | 0.5-1.50 | 21.20 | 12.10 | 2.80 | 2.30 | 11.50 | 3.20 | 3.50 |
| BRASS EARTH MALE TERMINAL WITH DIMPLE | |||||||||||
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | C1 | C2 | ||
| ME-184 | 2.2 Male Earth Terminal | 10K | N/A | 0.5-1.50 | 20.00 | 12.50 | 2.40 | 2.50 | 2.70 | ||
| BRASS SNAP ON FEMALE DIMPLE TERMINAL | |||||||||||
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | G | C1 | C2 |
| ME-105 DP | 2.8 F DIMPLE | 10K | 2.8X0.50 | 0.5-1.50 | 15.50 | 6.40 | 3.70 | 1.90 | 0.40 | 3.00 | 3.00 |
| BRASS SNAP ON FEMALE PLAIN TERMINAL FOR CONNECTOR WITHOUT POSITIVE LOCKING FOR BLADE CONNECTIONS | |||||||||||
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | G | C1 | C2 |
| ME-106 | 2.8 F PLAIN | 10K | 2.8X0.50 | 0.5-1.50 | 15.50 | 6.25 | 3.90 | 1.90 | 0.40 | 3.00 | 3.00 |
