Battery Lugs
Product Details:
X
Product Description

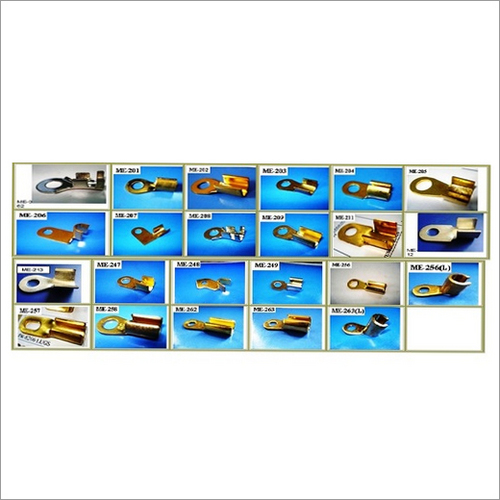

Battery Lugs
We carve for perfection and this helps us in developing highly advanced tools for our clients. Presenting Battery Lugs, these are manufactured using purest raw materials procured from trusted vendors. We offer the facility of customization and provide our products in following ranges.
Important specifications of Battery Lugs:
| PART NO | ITEM NAME | T | L | OD | ID | C1 | C2 |
| ME-062 | Maruti Lugs | 1.20 | 34.00 | 18.30 | 8.30 | 9.00 | 9.50 |
| ME-201 | Big Round | 1.60 | 51.00 | 25.50 | 12.70 | Ø15.50 |
|
| ME-202 | Big V | 1.60 | 52.00 | 24.40 | 11.80 | 15.80 | 14.80 |
| ME-203 | Medium Lug | 1.60 | 40.50 | 19.80 | 10.00 | 16.20 | 10.30 |
| ME-204 | Small Round | 1.60 | 38.30 | 16.50- | 9.20 | Ø14.00 |
|
| ME-205 | Small V | 1.60 | 39.00 | 16.00 | 10.40 | 14.20 | 9.00 |
| ME-206 | Van Lugs | 1.20 | 38.20 | 20.30 | 9.20 | 13.50 | 9.00 |
| ME-207 | Side Lugs | 1.20 | 33.90 | 16.80 | 8.00 | 13.20 | 8.50 |
| ME-208 | Maruti Lugs | 1.20 | 34.00 | 18.30 | 8.30 | 9.00 | 9.50 |
| ME-209 | H/Duty Lugs | 2.00 | 48.80 | 20.70 | 10.40 | 16.70 | 14.00 |
| ME-211(-) | M.B.T.(+ ) Cu. | 1.40 | 49.00 | 15.20 | 12.40 | 9.20 | 12.10 |
| ME-212 | Jumbo Lugs | 1.60 | 58.00 | 26.20 | 12.50 | 22.00 | 17.00 |
PART NO | ITEM NAME | T | L | OD | ID | C1 | C2 |
| ME-213 | Jumbo 'V' Lugs | 2.00 |
|
|
|
|
|
| ME-247 | VST Small Lugs | 2.00 | 33.00 | 15.60 | 8.30 | 11.80 | 11.80 |
| ME-248 | LA-507 (Ø 9.0) | 2.00 | 41.20 | 19.20 | 9.00 | 17.00 | 17.00 |
| ME-249 (Ø11.0) | LA-507 (Ø11.0) | 2.00 | 41.20 | -19.20 | 11.00 | 17.00 | 17.00 | - |
| ME-256 (9P) | MW 26995410-8202 B. Lugs (50mm2) | 3.00 | 38.50 | 20.00 | 9.00 | Ø 11.00 | G-6.00 | L-25.00 |
| ME-256L (11N) | MW 26995410-8203 B. Lugs(50mm2) | 3.00 | 38.50 | 20.00 | 11.00 | Ø 11.00 | G-6.00 | L-25.00 |
| ME-257 (N) | MW 26995410-8206 B. Lugs(35mm2) | 3.00 | 65.00 | 20.00 | 9.00 | Ø 11.00 | G-7.00 | L-25.00 |
| ME-258 (P) | MW 26545411-7601(25mm2) | 1.80 | 35.00 | 16.00 | 11.00 | Ø 8.00 | G-4.00 | L-15.00 |
| ME-262 (9P) | MW 25595411-8202 B. Lugs(35mm2) | 3.00 | 56.00 | 18.00 | 11.00 | Ø 11.00 | G-7.40 | L-25.00 |
| ME-263 (P) | MW 25765410-9905 B. Lugs(70mm2) | 3.00 | 36.50 | 22.00 | 10.50 | Ø 13.00 | G-6.90 | L-25.00 |
| ME-263L (N) | MW 25765410-9904 B. Lugs(70mm2) | 3.00 | 36.50 | 22.00 | 10.50 | Ø 13.00 | G-6.90 | L-25.00 |
