250 Series Terminal
Product Details:
X
Product Description

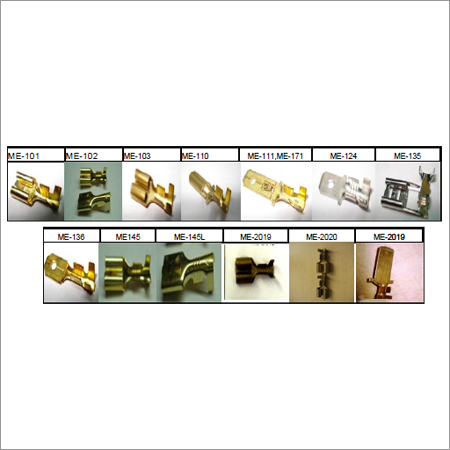

250 Series Terminal
We have gained an expertise in bringing forth a comprehensive range of 250 Series Terminal. This series is prepared using finest raw materials sourced from authentic sources. In below given specifications the conglomerate of 250 Series Terminal is available.
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | G | C1 | C2 | |
| ME-101 DP | 6.4 F SLOT (B) | 5K | 6.3X0.80 | 1-2.50 | 19.00 | 7.50 | 7.60 | 3.10 | 0.60 | 3.50 | 4.00 | |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | G | C1 | C2 | |
| ME-102B | 6.4 F PLAIN (B) | 5K | 6.3X0.80 | 1-2.50 | 19.50 | 7.40 | 7.50 | 2.95 | 0.55 | 3.60 | 3.50 | |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | G | C1 | C2 | |
| ME-103B | 6.4 F.LOCK(B) | 5K | 6.3X0.80 | 1-2.50 | 19.20 | 7.30 | 7.50 | 2.95 | 0.55 | 3.60 | 3.50 | |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | F | C1 | C2 | |
| ME-110C | 6.4 M WIN. (B) | 4K | 6.0X0.80 | 1.0-2.0 | 24.50 | 14.00 | 6.00 | 0.80 | 10.40 | 3.50 | 4.00 | |
| ME-171 | 6.4MP LL | 4K | 6.0X0.80 | 1- 3.00 | 24.80 | 13.10 | 6.00 | 0.80 | - | 3.90 | 4.60 | |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | LH | F | C1 | C2 |
| ME-111 | 6.4 M.LOCK | 4K | 6.00X0.80 | 1.0-2.50 | 24.50 | 14.00 | 6.00 | 0.80 | 2.40 | 12.60 | 3.50 | 3.80 |
| ME-163 | 6.4M/L LARGE (PB) | 4K | 6.30X0.80 | 0.5-1.50 | 28.20 | 15.50 | 6.30 | 0.80 | 2.50 | 14.70 | 3.20 | 3.20 |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | ID | C1 | C2 | ||
| ME-124 | 6.4M | 4K | 6.3X0.80 | 1-1.50 | 18.80 | 8.00 | 6.30 | 2.00 | 4.20 | 4.00 | ||
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | G | C1 | C2 | |
| ME-130 | 6.4F (LL) | 4K | 6.3X0.80 | 1-2.50 | 19.00 | 7.70 | 7.60 | 3.00 | 0.55 | 4.50 | 5.00 0 | |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | G | C1 | C2 | |
| ME-135 | 6.4 F FLAG | 3K | 6.3X0.80 | 1-2.50 | 16.00 | 7.80 | 7.50 | 3.00 | 0.65 | 3.50 | 3.20 | |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | ID | C1 | C2 | |
| ME-136 (K2) | 6.4 M (K2) | 5k | 6.3X0.80 | 1-2.50 | 20.20 | 8.60 | 6.35 | 0.80 | 180 | 3.20 | 3.50 | |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | G | C1 | C2 | |
| ME-145 | 6.4 F.P. (LL) | 4K | 6.3X0.80 | 1.5-3.0 | 19.50 | 7.70 | 7.50 | 2.90 | 0.60 | 5.00 | 4.60 | |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | G | C1 | C2 | |
| ME-145L | 6.4 F.L. (LL) | 4K | 6.3X0.80 | 1.5-3.0 | 19.50 | 7.70 | 7.50 | 2.90 | 0.60 | 5.00 | 4.60 | |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | H | G | C1 | C2 | |
| ME-2011 | 6.4 F Slot (S/L) | 5K | 6.3x0.80 | 0.25-0.75 | 18.70 | 7.50 | 7.40 | 3.00 | 0.60 | 3.10 | 3.10 | |
| ME-2012 | 6.4 F Plain (S/L) | 5K | 6.3x0.80 | 0.25-0.75 | 18.80 | 7.70 | 7.50 | 2.90 | 0.60 | 3.30 | 3.10 | |
| PART NO | ITEM NAME | Roll Qty. | TAB SIZE | Cable Size | L | EL | W | G | H | H1 | D | D1 |
| ME-2019 | 5.1 Male |
| N/A |
| 22.00 | 14.00 | 5.10 | . | 2.80 | 3.00 | 3.00 | 1.80 |
